New style heavy duty full set door commercial grade 1 American mortise lock

FOB Reference Price:Get Latest Price
US $9-49 / Pieces | 1 Piece/Pieces mortise door lock (Min. Order)
Report Suspicious Activity
Overview

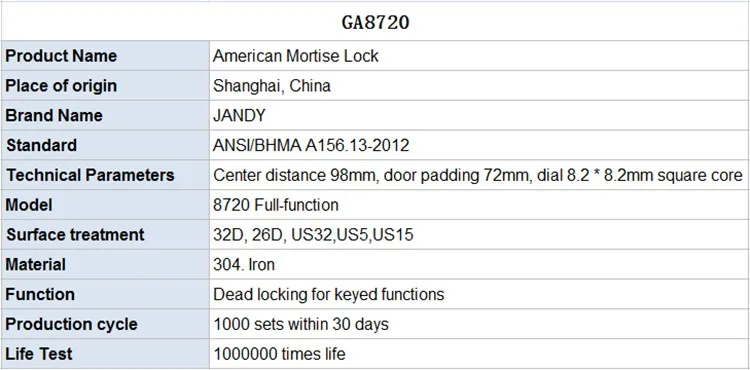

Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
JANDY
Model Number:
GA8720
Product Name:
American Mortise Lock
Size:
70mm
Model:
8720 Full-function
Material:
304.Iron
Place of origin:
Shanghai, China
Standard:
ANSI/BHMA A156.13-2012
Surface treatment:
32D, 26D, US32,US5,US15
Function:
Dead locking for keyed functions
Production cycle:
1000 sets within 30 days
Life Test:
1000000 times life
Supply Ability
Supply Ability:
800 Piece/Pieces per Day mortise door lock
Packaging & Delivery
Packaging Details
1.Inner packing :One piece per white box or color box
2.Out packing:6 pc per kraft paper outer box
Port
Shanghai
Lead Time :
15-30 WORKING DAYES
Video Description

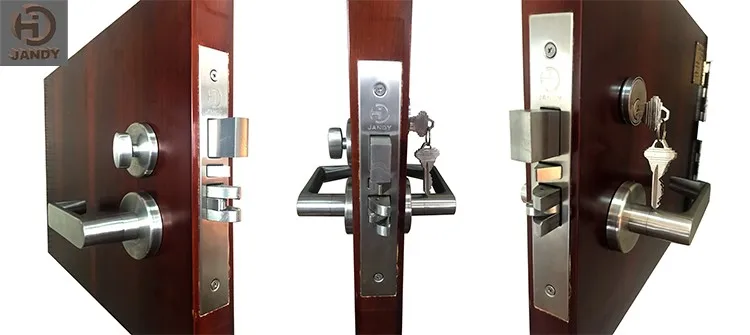

 New style heavy duty full set door commercial grade 1 American mortise lock

Product Description



--



The 8700 Series Mortise Lockset is designed to meet the ANSI A156.13.-2005 Grade 1. This means it will function in excess of over 1000000 times. It is suitable for frequently hotels and hospitals.



Feature



--_02

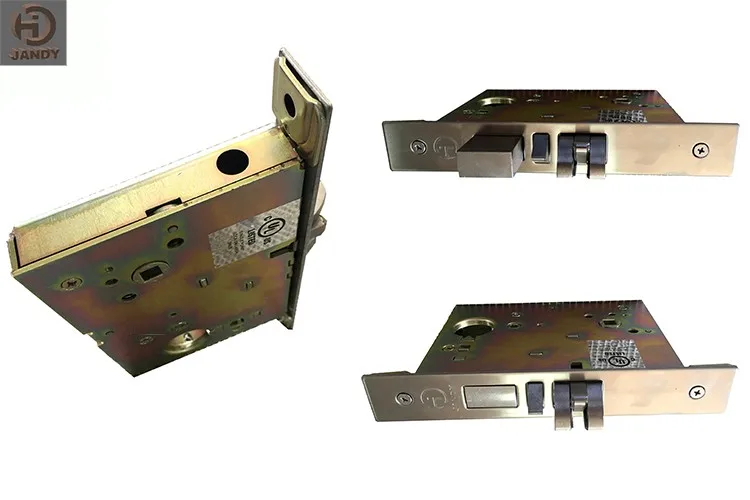

1. Heavy duty commercial mortise lock, all bolts are made of stainless steel, most working parts inside the case are made of high strength steel alloy.
2. UL listed 3 hour fire rating, it also meets or exceeds the ANSI A156.13-2005 Grade 1 specfication.

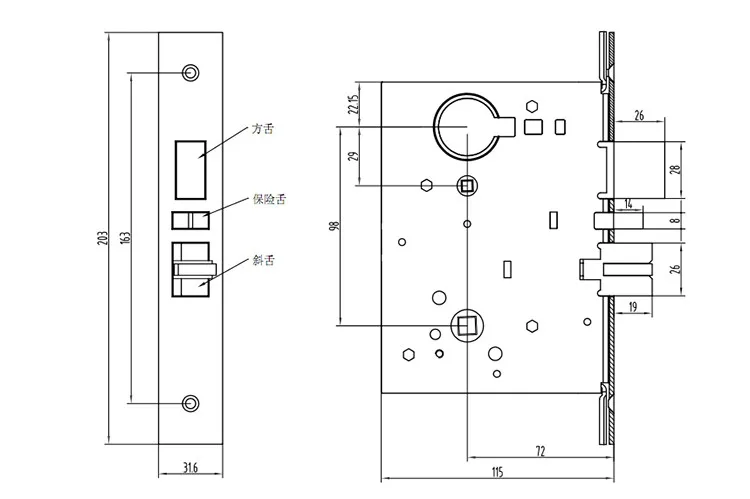

3. The lock case has a dimension of 92mm center cylinder to spindle, which enable the lock to retrofit most of manufactures' mortise lock, without or with a little modification to the drill hole of door, offering for like replacement capabilities.
4. The lock case is non-handed, reversibility without disassembling the lock case allowing for a full compliment of function.

5. Material of lever can be optional for eigher forged solid brass or lower cost pressure zinc cast. Rose and escutcheon are snap-on.

6. Through-bolted trim self-align with lock case.





8720





8720287203

8720



872048704D,8720
